Xteee Brass "Rebel" Edition

Case:

Layout: 7.5 degrees XT.
W: 53 mm * L: 146.4 mm.
Front H: 19.9 mm, Back H: 42.79 mm.
Top tent: 7 degrees.
Mount: Top mount.
Geon F1 Feet's.

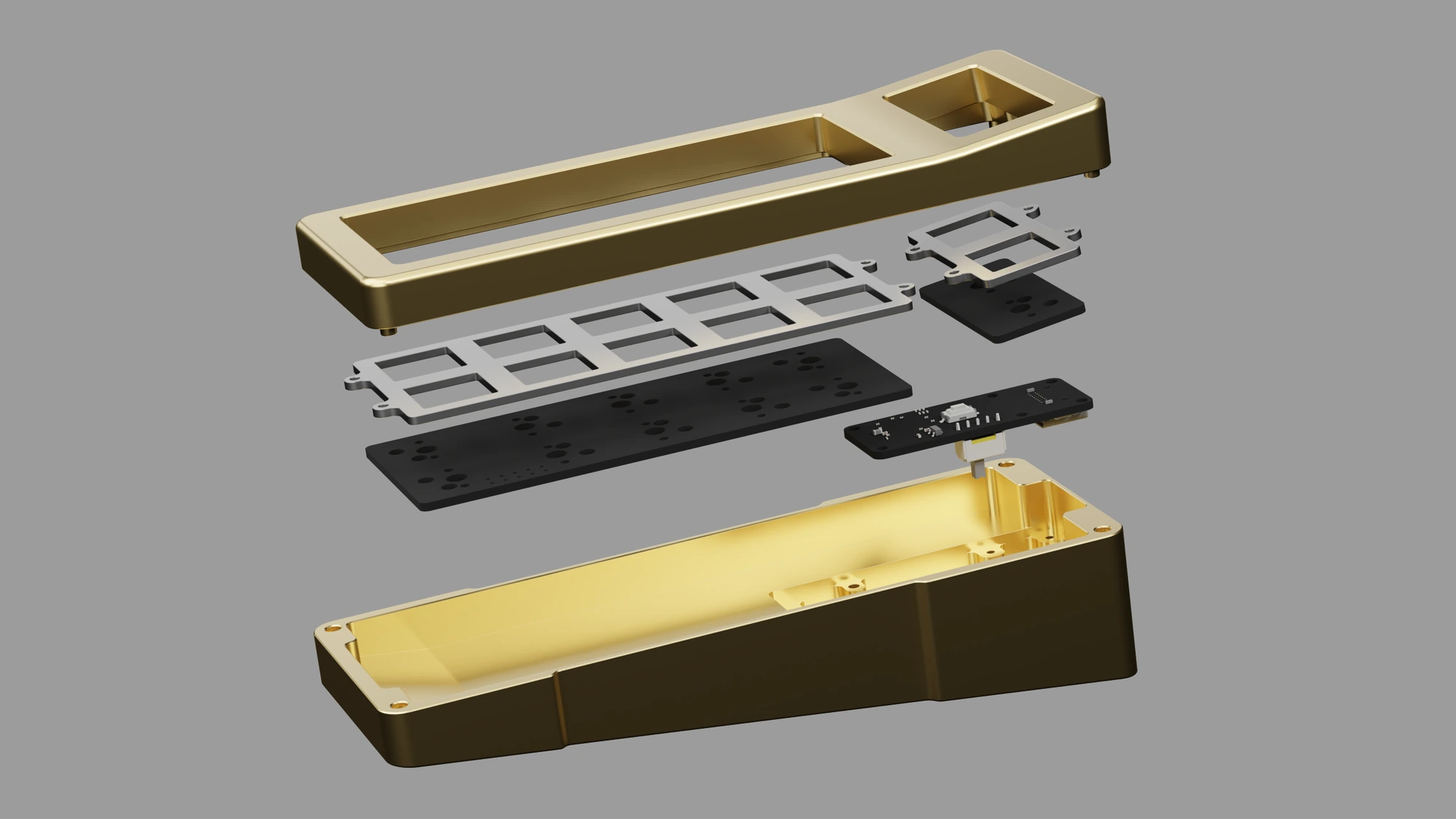

Seamed case design with 4 alignment pillars.
Material Brass Only.

Plate:

Top & Bottom FR4 or Alu plates. (FR4 will cost less than Alu but will leave it to you guys!).

PCB: Hotswap only (For now... but I will provide EC & MX\ALPS solder in later GBs or PCBs GB runs)

2 MX PCBs + JST cable.
Thickness: 1.6 mm.
PCB layout support: XT Macros.
Custom UDB + JST cable. (I am working on something fun!)
Firmware: QMK & Vial.

What is included:

Brass Top & Bottom Xteeeeeeeeeeeeeeeeeeeeeeeee! case
2 Plates of choice. (Alu or FR4)
2 MX Hotswap PCBs + JST cable.
Screws (Extra included).
Bottom buttons (for bottom mount).
Mounting pads.
Custom UDB + JST cable. (I am working with something fun!)
Carrying case (I will make this as optional).
